Thông Số Kỹ Thuật
Mã hóa
H.265 /H.264/MJPEG
Độ phân giải tối đa
4MP ( 2560 × 1440)
Tự động chuyển đổi ICR
Ngày/Đêm rõ nét
Công nghệ 3D DNR, WDR
HLC, BLD, IR thông minh, tự khử sương
Mã hóa
ROI
Tầm nhìn đêm IR
10m đến 20m
Nguồn PoE một chiều
DC12V/PoE
Bảo vệ thân vỏ
IP67
Hỗ trợ 3 luồng
Support remote monitoring by smart phones& tablet PCs with iOS and Android OS

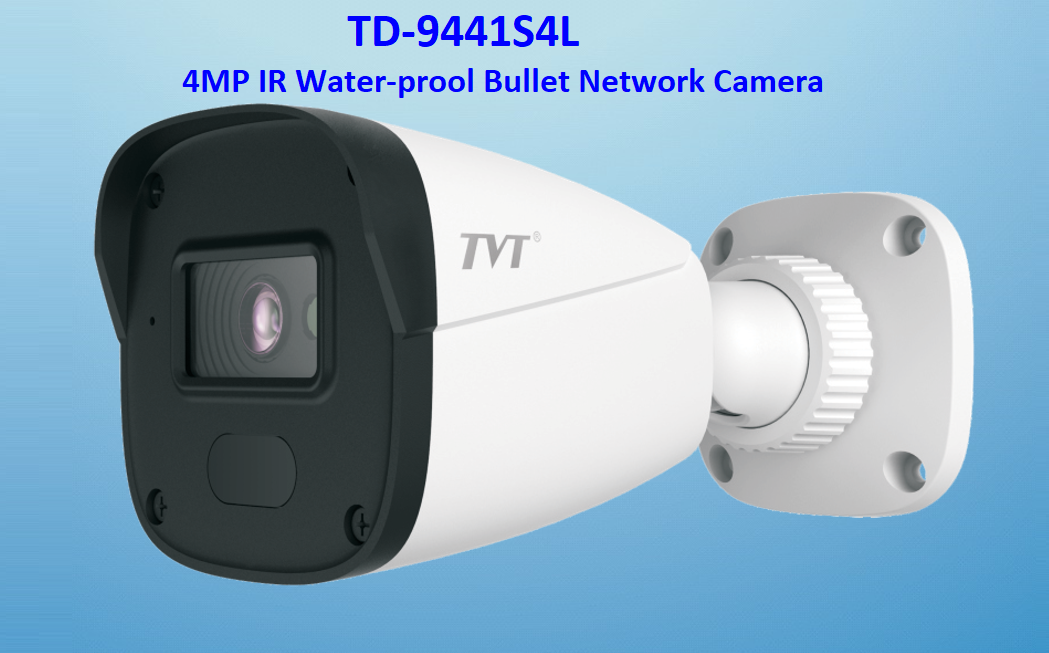

Camera IP 4MP thân trụ TD-9441S4L hãng TVT- Water-proof Bullet- BH 12T
Giá: Liên hệ
Chat Zalo hoặc gọi Hotline - Hỗ trợ 24/7
Ms Huyền - 038.456.1346Cam kết
- Đảm bảo hàng chính hãng, đầy đủ CO, CQ
- Miễn phí đổi trả khi hàng lỗi từ nhà sản xuất
- Giải quyết mọi thông tin và đáp ứng mọi nhu cầu
| Mã sản phẩm | TD-9441S4L | |||
| Camera | ||||
| Image Sensor | 1 / 3 “CMOS | |||
| Image Size | 2560×1440 | |||
| Electronic Shutter | 1 / 3s ~ 1 / 100000s | |||
| Iris Type | Fixed Iris | |||
| Min. Illumination | 0.03 lux @F1.6, AGC ON; 0 lux with IR | |||
|
Lens |
2.8mm@F1.6, Horizontal FoV: 98°;Vertical FoV:53°;Diagonal FoV:116° 3.6mm@F1.6, Horizontal FoV:80°;Vertical FoV:44°;Diagonal FoV:94° | |||
| Focus | Fixed | |||
| Lens Mount | M12 | |||
| Day&Night | ICR | |||
| Wide Dynamic Range | Digital WDR | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Digital NR | Yes | |||
| S/N Ratio | ≥50dB | |||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~80°;Rotation: 0°~360° | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 56.52m(185.43ft) | 22.61m(74.17ft) | 11.30m(37.07ft) | 5.65m(18.53ft) |
| 3.6mm | 71.28m(233.85ft) | 28.51m(93.53ft) | 14.26m(46.78ft) | 7.13m(23.39ft) |
| Image | ||||
|
Video Compression |
Main stream: H.265 / H.264
Sub stream: H.265 / H.264 / MJPEG Third stream: H.265 / H.264 / MJPEG |
|||
| H.265 Compression Standard | Main Profile@Leve4.1 High Tier | |||
| Resolution | 4MP ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ),
720P ( 1280 × 720 ), D1, 480× 240, CIF |
|||
| Main Stream | 60Hz: 4MP/3MP/1080P/720P(1~30fps); 50Hz: 4MP/3MP/1080P/720P(1~25fps) | |||
| Sub Stream | 60Hz: 720P/D1/CIF (1~30fps);50Hz: 720P/D1/CIF (1~25fps) | |||
| Third Stream | 60Hz: D1/480× 240/CIF (1~30fps);50Hz: D1/480× 240/CIF(1~25fps) | |||
| Bit Rate | 64 Kbps ~ 8 Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser | |||
| ROI | Each ROI to be configured separately | |||
| Interfaces | ||||
| Network | RJ45 | |||
| Video Output | No | |||
| Audio | No | |||
| Storage | No | |||
| Reset | No | |||
| Functions | ||||
| Remote Monitoring | Web browser /TVT NVR/NVMS2.X/Mobile APP | |||
| Web Browser | IE 11 (plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+ | |||
| Online Connection | Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPs, QoS | |||
| Interface Protocol | ONVIF | |||
| Storage | Network remote storage | |||
| Smart Alarm | Motion detection | |||
|
Smart Event |
Region intrusion detection, line crossing detection, abandoned/missing object detection, video exception (scene change, video blur and video cast detection) | |||
| General Function | Watermark, video mask, heartbeat, corridor pattern | |||
|
Security |
Video encryption, firmware encryption, HTTPs encryption, configuration
encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/HTTPs |
|||
| PoE | Yes |
| IR Distance | 10 ~ 20 m |
| Ingress Protection | IP67 |
| Others | |
| Power Supply | DC12V/PoE |
| Power Consumption | < 3.5W |
| Operating Environment | – 20 °C ~ 55 °C (-4°F~131°F); Humidity: less than 95 % (non-condensing) |
| Storage Environment | – 20 °C ~ 60°C (-22°F~140°F), Humidity: less than 95 % (non-condensing) |

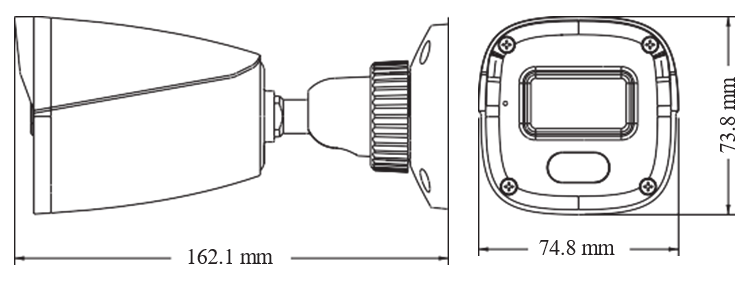

| Dimensions ( mm ) | 162.1 × 74.8 × 73.8 |
| Weight ( net ) | Approx. 0.24KG |
| Installation | Ceiling mounting; Wall mounting |
| Certificate | CE, FCC |
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
